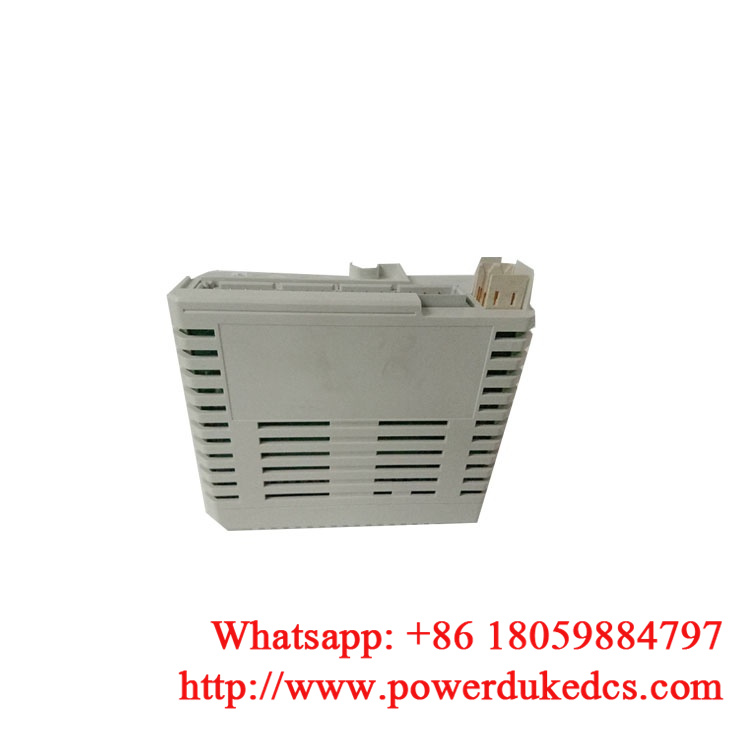

DO630 3BHT300007R1 | S600 series rack | DO630 Digital Output 16Ch 250VAC Isolated,16 Groups

DO630 3BHT300007R1 | S600 series rack | DO630 Digital Output 16Ch 250VAC Isolated,16 Groups

Product ID:3BHT300007R1
ABB Type Designation:DO630Catalog
Description:DO630 Digital Output 16ch 250VAC
Long Description:DO630 Digital Output 16Ch 250VAC Isolated,16 Groups
Product Net Depth / Length:252 mm
Product Net Height:273 mm
Product Net Width:40 mm
Product Net Weight:1.2 kg
Get a Quote
Category:

Description

The ABB DO630 3BHT300007R1 is a heavy-duty digital output module from the proven ABB S600 I/O family, designed for direct switching of high-voltage alternating current (AC) loads in industrial automation systems. This module provides 16 independently isolated channels, each capable of directly controlling 250 VAC field devices such as motor contactors, solenoid valves, heaters, and lighting circuits without requiring intermediate relays. The ABB DO630 3BHT300007R1 is engineered for maximum safety and reliability, with each channel featuring full galvanic isolation and robust protection suited for harsh electrical environments typical in process and manufacturing industries. Its design simplifies panel layout by eliminating the need for external interposing relays, saving space, reducing wiring complexity, and increasing overall system reliability. This module is a cornerstone for applications requiring direct, high-power AC control within ABB’s Advant and MOD 300 DCS platforms.

Parameter Values

  • Product Model: ABB DO630 3BHT300007R1

  • Brand: ABB

  • Warranty: One Year

  • Supply Voltage (Logic Side): 5 VDC (via S600 I/O bus)

  • Output Rating: 16 channels, 250 VAC

  • Max Continuous Current per Channel: 2 A RMS

  • Inrush Current Capacity: 15 A for 20 ms

  • Operating Temperature: 0°C to +60°C

  • Storage Temperature: -40°C to +85°C

  • Response Time: < 10 ms (One AC cycle at 50/60 Hz)

  • Output Type: Solid-state relay (SSR) with Zero-Cross switching

  • Isolation: 2500 VAC channel-to-channel and channel-to-system

  • Protection: Snubber network for inductive loads, thermal overload

  • Communication Interface: S600 I/O bus

  • Status Indication: Per-channel LED

  • Mounting: S600 series rack

Application Scenarios

Direct Motor Control in Industrial Plants: Starting and stopping pump, fan, and compressor motors via direct connection to motor contactor coils in water treatment, HVAC, and manufacturing facilities.

Heating Element Control: Direct switching of high-power industrial heaters, oven elements, and boiler ignition systems in process heating applications for chemicals, food processing, or plastics.

Plant Utility and Lighting Control: Managing high-voltage lighting panels, ventilation fans, and other facility-wide AC utility circuits directly from the DCS, centralizing control and monitoring.
