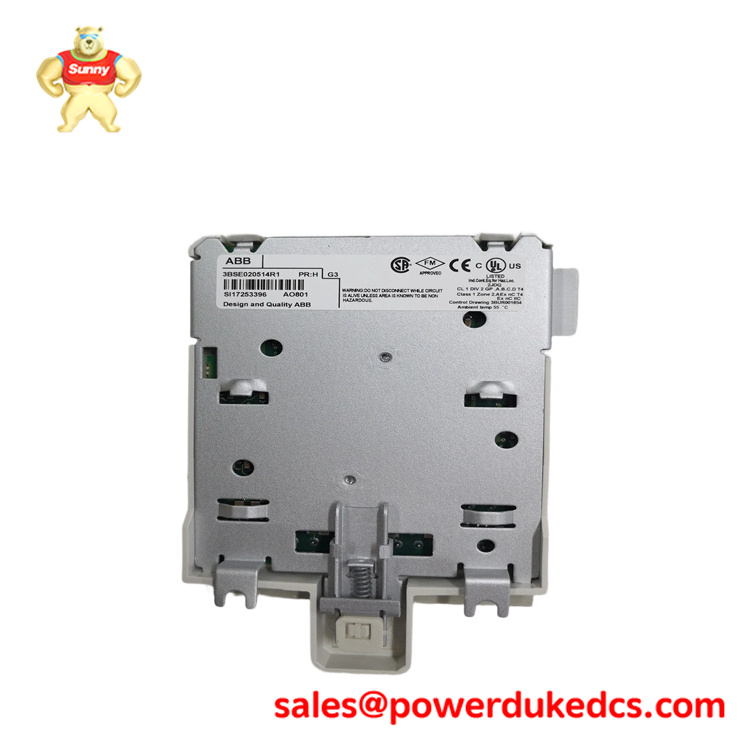

AO801 | C1 Div 2 cULus | Analog Output Module

AO801 | C1 Div 2 cULus | Analog Output Module

Article number :3BSE020514R1
Type :Analog Output
Signal specification :0… 20 mA, 4…20 mA
Number of channels :8
Dimensions
Width: 86.1 mm (3.4”)
Depth :58.5 mm (2.3”)
Height: 110 mm (4.33”)
Weight: 0.24 kg (0.53 lbs.)

Condition: New/Used
In Stock: In Stock/Futures
Delivery Time: 3-5 days
HS Code: 9032900090.00

Get a Quote
Category:

Description

The AO801 Analog Output Module has 8 unipolar analog output channels. The module performs selfdiagnostic cyclically. A low internal power supply sets the module in INIT state (no signal from the module).

Features and benefits

  • 8 channels of 0…20 mA, 4…20 mA outputs
  • OSP sets outputs to predetermined state upon error detection
  • Analog Output is to be short circuit secured to ZP or +24 V
  • Process and power connection via detachable connectors

Environment and certification
CE mark Yes
Electrical safety :EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification: ABS, BV, DNV, LR
Temperature, Operating :0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
Pollution degree Degree 2, IEC 60664-1
Corrosion protection :ISA-S71.04: G3
Relative humidity :5 to 95 %, non-condensing
Max ambient temperature 55 °C (131 °F), for vertical mounting 40 °C (104 °F)
Protection class: IP20 according to IEC 60529
Mechanical operating conditions: IEC/EN 61131-2
EMC :EN 61000-6-4 and EN 61000-6-2
Overvoltage categories: IEC/EN 60664-1, EN 50178
Equipment class Class I according to IEC 61140; (earth protected)
RoHS compliance :DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance :DIRECTIVE/2012/19/EU



Application Scenarios

  • Plant-Wide Instrumentation Monitoring: Connecting a large number of pressure, temperature, and level transmitters across a refinery, chemical plant, or power generation facility for centralized process visualization and control.

  • Tank Farm & Storage Area Management: Monitoring level and inventory for multiple storage tanks in bulk liquid terminals or processing plants.

  • Utility System Monitoring: Acquiring flow and pressure data from plant cooling water, compressed air, and steam distribution networks.

  • Batch Process Data Logging: Capturing precise measurements from multiple sensors (e.g., temperature, pH, conductivity) during critical phases of pharmaceutical or specialty chemical batch production for quality assurance and recipe compliance.
