Description

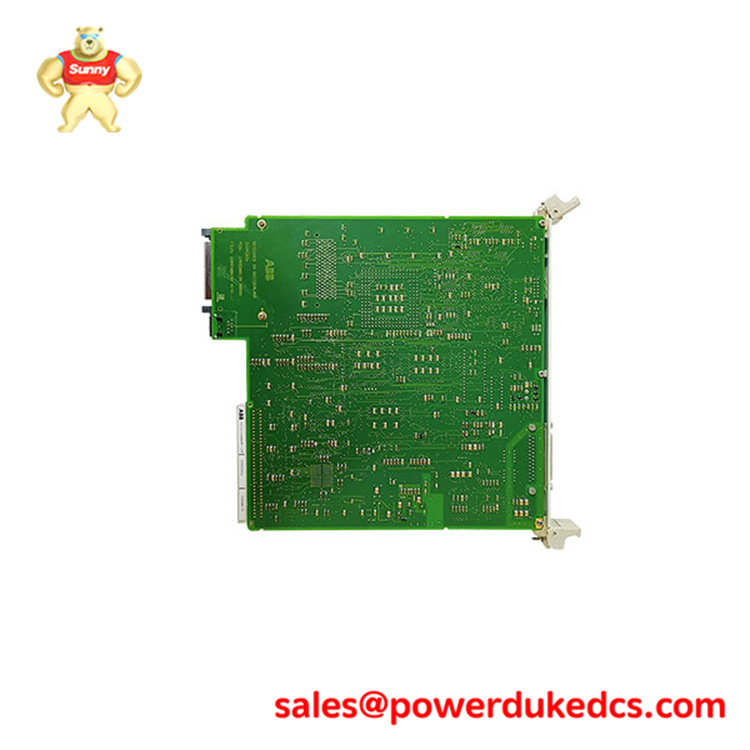

The ABB GCC960C102 is a high-performance control module designed for industrial automation systems. It functions as a controller, drive, or control circuit board for production lines, power equipment, and process industries.
📊 Key Parameters
|
Parameter
|
Value / Description
|
|---|---|
|
Model
|
|
|
Brand
|
ABB
|
|
Type
|
Industrial control module / motor driver / control circuit board
|
|
Supply Voltage
|
Typically 24 V DC
|
|
I/O (Typical)
|
• Inputs: ~20 Digital, 4 Analog, 2 PT100
• Outputs: ~16 Digital, 2 Analog Exact I/O count depends on the specific version. |
|
Communication
|
RS-485, Modbus RTU, Modbus TCP, Ethernet; some versions also support CANopen, PROFIBUS
|
|
Processing Speed
|
Cycle time in the order of hundreds of microseconds (e.g., ~230 µs)
|
|
Dimensions
|
Approx. 150 × 150 × 80 mm (for reference only)
|
|
Weight
|
Approx.1.5 kg
|
|
Operating Temp.
|
-10°C to +55°C
|
|
Environmental Rating
|
Suitable for industrial environments (high temp, humidity, dust); protection rating not clearly specified in available data
|
🏭 Application Scenarios
-
Manufacturing: GCC960C102 Controls automated production lines, material handling systems, and robotic workcells.
-
Energy & Power: Used for generator and power equipment regulation, as well as for controlling fans and pumps.
-
Process Industries: Manages temperature, pressure, flow, and other parameters in industries like chemicals, oil & gas, and water treatment.
-
Building Automation: Can be integrated into systems for HVAC, lighting, and other equipment control.
🔌 Installation & Wiring
-
Mounting: GCC960C102 Typically installed on a DIN rail inside a control cabinet, with recommended clearances for heat dissipation.
-
Power Supply: Requires a stable 24 V DC supply (or as specified by the version). Ensure proper wiring and fuse protection.
-
Field Wiring: Connect field devices (sensors, actuators) to the I/O terminals according to the wiring diagram.
-
Communication: Connect to the fieldbus or Ethernet network as per the system design.
-
Programming: Configure and program the module using ABB’s engineering tools. For critical applications, a backup and version control strategy is recommended
