Description
Product Overview

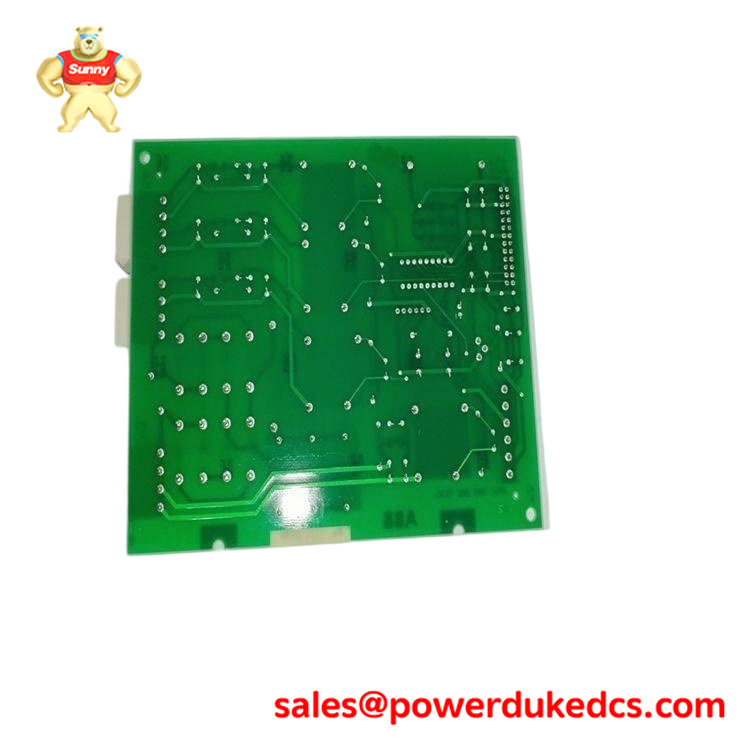

The ABB DSTD150 is a high-performance, fully digital DC Drive Controller module, representing the core intelligence unit of ABB’s DCS 500 series of DC drive systems. This module is designed to provide precise, responsive, and reliable control for industrial DC motors used in a wide range of demanding speed and torque regulation applications. It integrates advanced control algorithms, comprehensive I/O management, and powerful communication capabilities into a single, modular unit, replacing older analog control boards with a modern, software-configurable solution.
As the central processor, the ABB DSTD150 executes all critical drive functions, including speed and current (torque) loop regulation, ramp generation, and diagnostic monitoring.
Parameter Values
- Product Model: DSTD150
- Brand: ABB
- Warranty: One Year
- Compatible Drive Series: DCS 500
- Control Loops: Digital speed and current (torque) control
- Control Modes: Speed control, Torque (Current) control, IR compensation
- Supply Voltage: 24 VDC
- Power Consumption: 15 W
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +85°C
- Speed Feedback: Accepts signals from tachogenerator, encoder, or armature voltage (EMF)
- Analog Inputs: 2 (for speed/torque reference, 0/4-20 mA or ±10 V)
- Analog Outputs: 2 (0/4-20 mA or 0-10 V, for speed/current display)
- Digital I/O: Multiple programmable digital inputs and outputs
- Communication Interface: RS-232/RS-485 (for DriveWindow PC tool), Fieldbus via optional adapter (e.g., PROFIBUS DP)
- Software: Parameter setting via DriveWindow
Application Scenarios
Metal Rolling & Processing: Providing precise speed and tension control for DC motors in rolling mill stands, collers, and process lines in steel and non-ferrous metal industries.
Mining & Material Handling: Controlling the speed and torque of DC motors on large hoists, excavators, and high-inertia conveyor systems where robust and reliable control is essential.
Retrofit & Modernization Projects: Upgrading older analog-controlled DC drives (e.g., ABB DCS 400 series) with a modern digital control platform to improve performance, reliability, and diagnostic capabilities without replacing the entire drive system.
