Product Overview

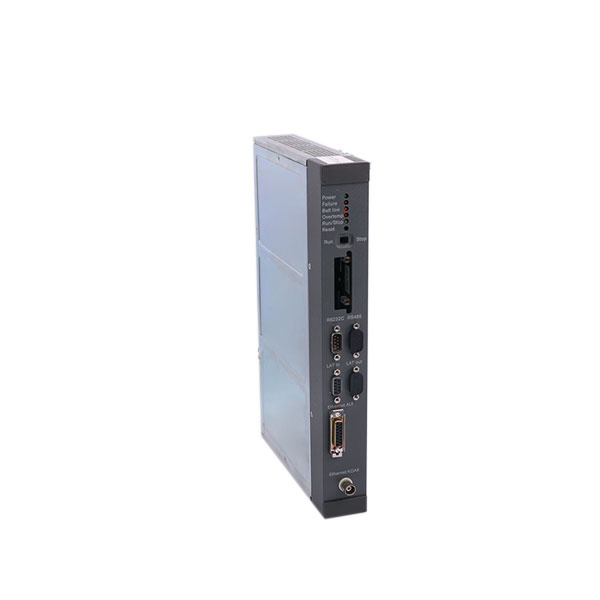

The ABB DCP02 is a robust and versatile Digital Control Processor module, a fundamental component of the ABB MOD 30 and MOD 30FF series of compact, modular programmable controllers (PLCs). This module serves as the central intelligence unit for automation applications, responsible for executing user-programmed control logic, managing memory, and coordinating data flow between I/O modules and communication interfaces. Designed for reliability in industrial environments, the DCP02 provides deterministic performance for sequential control, process regulation, and data handling tasks across various discrete and small-scale process applications.
As the core processor, the ABB DCP02 dictates the system’s performance, I/O capacity, and functional capability.
Parameter Values
- Product Model:DCP02
- Brand: ABB
- Warranty: One Year
- Processor Type: 16-bit Microprocessor
- User Program Memory: 16 Kbytes
- Data Memory: 8 Kbytes
- Input Voltage: 5 VDC (via backplane)
- Power Consumption (Module): 1.5 A @ 5 VDC
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Scan Time: Typically < 5 ms per 1K of logic
- Real-Time Clock: Integrated (battery-backed)
- Max. I/O Capacity: Up to 512 digital I/O points (system dependent)
- Communication Port: RS-232/RS-485 (configurable)
- Supported Protocols: MODBUS RTU/ASCII, ABB MOD 30 Native Protocol
- Dimensions: Single-slot module for MOD 30 rack (approx. 120mm x 60mm x 120mm)
Application Scenarios
Machine Automation: DCP02 Used as the primary controller for packaging machines, conveyor systems, assembly stations, and material handling equipment requiring reliable sequential and interlock logic.
Building Management Systems (BMS): Controls HVAC functions, lighting automation, and access control systems in commercial buildings, leveraging its communication capabilities for network integration.
Infrastructure Control: Manages processes in water pumping stations, small wastewater treatment units, and energy substation auxiliary systems where robust, stand-alone control is essential.
