Description

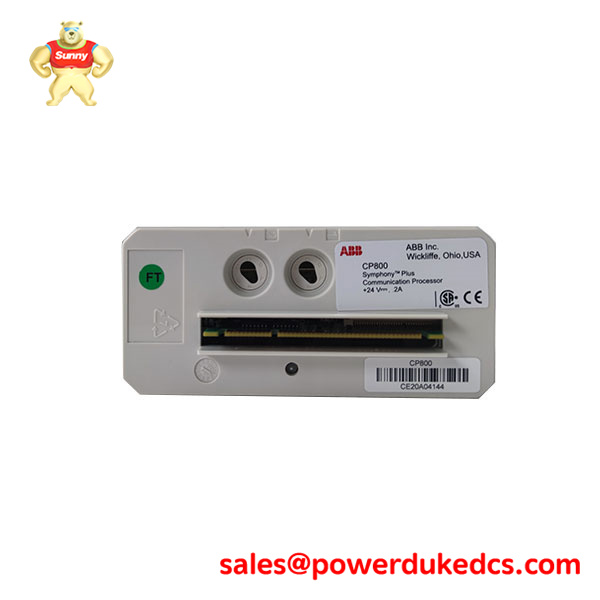

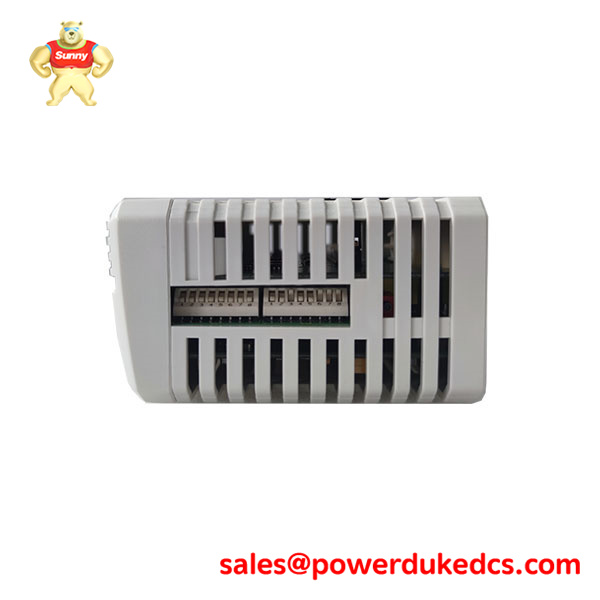

The ABB CP800 is a high-performance communication processor module designed for seamless integration within ABB Symphony Plus DCS and Advant Controller 800 systems. It acts as the central communication hub, enabling real-time data exchange between controllers, I/O modules, and upper-level SCADA/MES/EMS systems.
This module is built for demanding process industries, offering high reliability, multi-protocol support, and long-term availability, making it ideal for power generation, water treatment, and oil & gas applications.
📊 Parameter Values
-
Product Model: ABB CP800
-
Brand: ABB
-
Warranty: 12 months
-
Product Type: Communication Processor Module
-
Compatible Controllers: ABB Symphony Plus HPC800 / Advant Controller 800
-
Input Voltage: 24 V DC ±10% (system bus powered)
-
Power Consumption: Approx. 10 W (typical)
-
Processor: Dual 32-bit ColdFire, 256 MHz
-
Memory: 64 MB RAM, 4 MB ROM
-
Communication Ports: 1x PN800 Plant Network, 1x 10/100 Mbps Ethernet, 1x Serial (RS-232/RS-485)
-
Supported Protocols: PN800 Plant Network, PROFIBUS, Modbus RTU/TCP, PROFINET
-
Operating Temperature: 0 °C to +70 °C
-
Storage Temperature: -20 °C to +70 °C
-
Relative Humidity: 5–95% non-condensing
-
Installation: Horizontal in HPC800 controller cage / DIN rail
-
Dimensions: Approx. 170 × 104 × 74 mm
-
Weight: Approx. 0.99 kg
-
Certifications: CE, UL, RoHS
Application Scenarios
-
Power Plant Automation: Connects boiler, turbine, and balance-of-plant controls to the central DCS for monitoring and optimization.
-
Water & Wastewater Treatment: Integrates PLCs, sensors, and actuators for supervisory control of pumping, dosing, and filtration processes.
-
Oil & Gas Production: Links remote well sites and processing units to the main control center for real-time data visibility.
-
Manufacturing & Process Industries: Acts as a protocol bridge between ABB and third-party PLCs, HMIs, and MES/ERP systems.
