Description
Product Overview

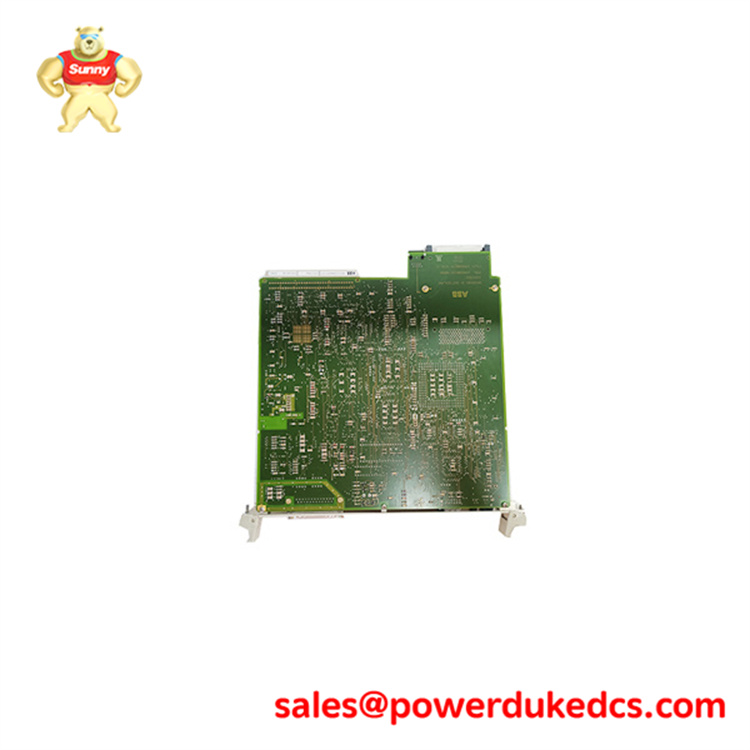

The ABB 216VC62A HESG324442R112/F is a high-integrity processor and interface module designed for ABB’s Symphony Plus and related DCS/SCADA systems. It serves as a central processing and communication unit, linking protection, measurement, and control I/O modules to the system backplane. This module is engineered for demanding applications such as substation automation and power plant control, where high reliability, fast signal processing, and data integrity are critical. It features a modular, control-room-mountable design and supports LD instruction processing, hard PLC functions, and multiple communication interfaces, making it ideal for use as a core or sub-processor in mission-critical automation architectures.
Parameter Values
-
Product Model: ABB 216VC62A HESG324442R112/F
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC (nominal)
-
Operating Temperature: 0°C to +60°C
-
Storage Temperature: -20°C to +70°C
-
Response Time: ≤ 10 ms (typical for protection and trip decisions)
-
Protection Class: IP20 (panel-mount module)
-
Accuracy Class: 0.1% (for analog/digital conversion and measurement functions)
-
Output Frequency: Not applicable (primarily processes and routes digital and analog I/O signals)
-
Rated Current Range: Not applicable (module-level current consumption specified instead)
-
Communication Interface: B448C backplane bus, object bus
-
Supported Protocols: Proprietary ABB B448C / object bus protocol
-
Overload Capacity: Protected against I/O and bus overcurrent; module shuts down safely under fault conditions
-
Dimensions: Approx. 100 mm × 60 mm × 120 mm (H × W × D; varies with mounting)
Application Scenarios
-
Substation Automation: Integrates protection, measurement, and control I/O in high-voltage substations, ensuring reliable data exchange between bay-level devices and the central control system.
-
Power Plant Control: Serves as a core or sub-processor in turbine, generator, and boiler protection systems, handling critical measurements and initiating safety shutdowns.
-
Process Industry DCS: Used in Symphony Plus or AC800 systems for fast signal processing, event recording, and inter-module communication in oil, gas, and chemical plants.
-
Data Acquisition & Analysis: Supports disturbance recording and event logging for post-incident analysis, with data accessible via front-panel or bus interfaces for evaluation with dedicated tools.
