Description
Product Overview

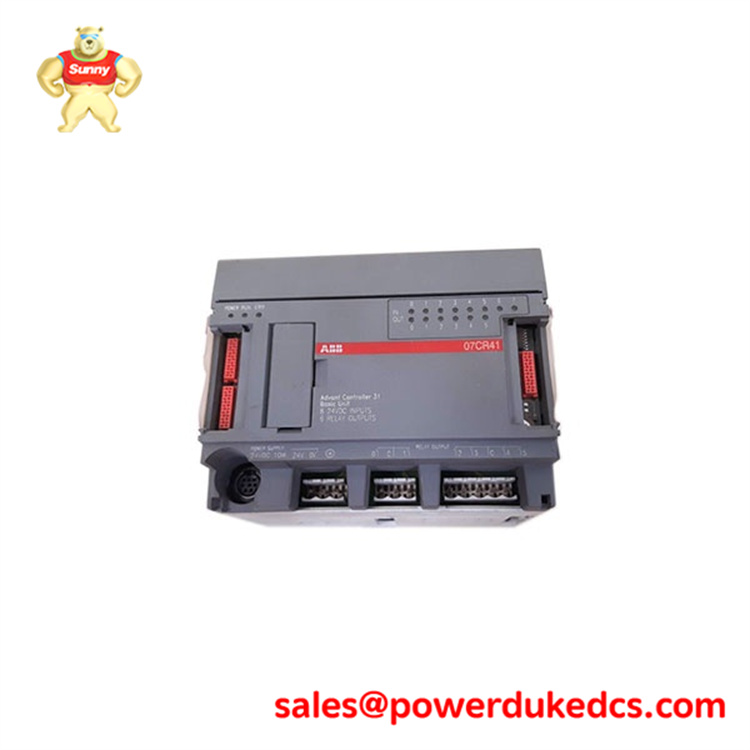

The ABB 07CR41 is a compact, high-performance programmable logic controller (PLC) from the ABB Advant Controller 31 (AC31) family. Designed for distributed automation, it serves as a stand-alone or expandable CPU unit with integrated I/O for small to medium-sized control tasks.
This controller is built for panel or DIN-rail mounting and is commonly used as the core logic unit in machinery control systems, skid-mounted process units, and plant auxiliary systems.
Parameter Values
-
Product Model: ABB 07CR41 (Type Designation: 07CR41-120/230VAC)
-
Brand: ABB
-
Warranty: One Year
-
Product ID: 1SBP260021R1001
-
Supply Voltage: 120/230 V AC (nominal)
-
Onboard I/O:
-
Digital Inputs: 8 channels, 24 V DC (sink/source)
-
Relay Outputs: 6 channels, 2 A max. per contact
-
-
Max. I/O Expansion:
-
Digital I/O: Up to 110 points
-
Analog I/O: Up to 48 channels
-
-
User Program Memory: 34 kB (Flash EPROM)
-
User Data Memory: 4.4 kB (non-volatile RAM)
-
Processor: High-speed microprocessor for real-time control
-
Serial Communication: RS-485 interface supporting ABB CS31 and Modbus RTU
-
Max. Hardware Counter Input Frequency: 7 kHz
-
Real-Time Clock: Integrated, with battery backup
-
Mounting: 35 mm DIN rail (TH35-7.5 / TH35-15) or panel mounting
-
Operating Temperature: 0 to +55 °C
-
Storage Temperature: -40 to +75 °C
-
Protection Class: IP20 (front panel)
-
Max. Altitude: 2000 m without derating
-
Dimensions (W × H × D): Approx. 152 × 100 × 125 mm
-
Weight: Approx. 0.92 kg
Application Scenarios
-
Process Skids & Modular Plants: Central controller for small process units in oil & gas, chemicals, and water treatment.
-
Manufacturing Equipment: Logic control for conveyors, packaging machines, and material handling systems.
-
Building & Infrastructure: Used in HVAC control panels, pump stations, and lighting systems for reliable on/off control.
-
Machine Control: Stand-alone or networked control for CNC machines, test rigs, and other automated equipment.
-
Legacy System Upgrade: A direct replacement or migration path for older ABB AC31 or Advant OCS installations.
